Mechanical Presses
CMC CLEARING S2 250-108-52

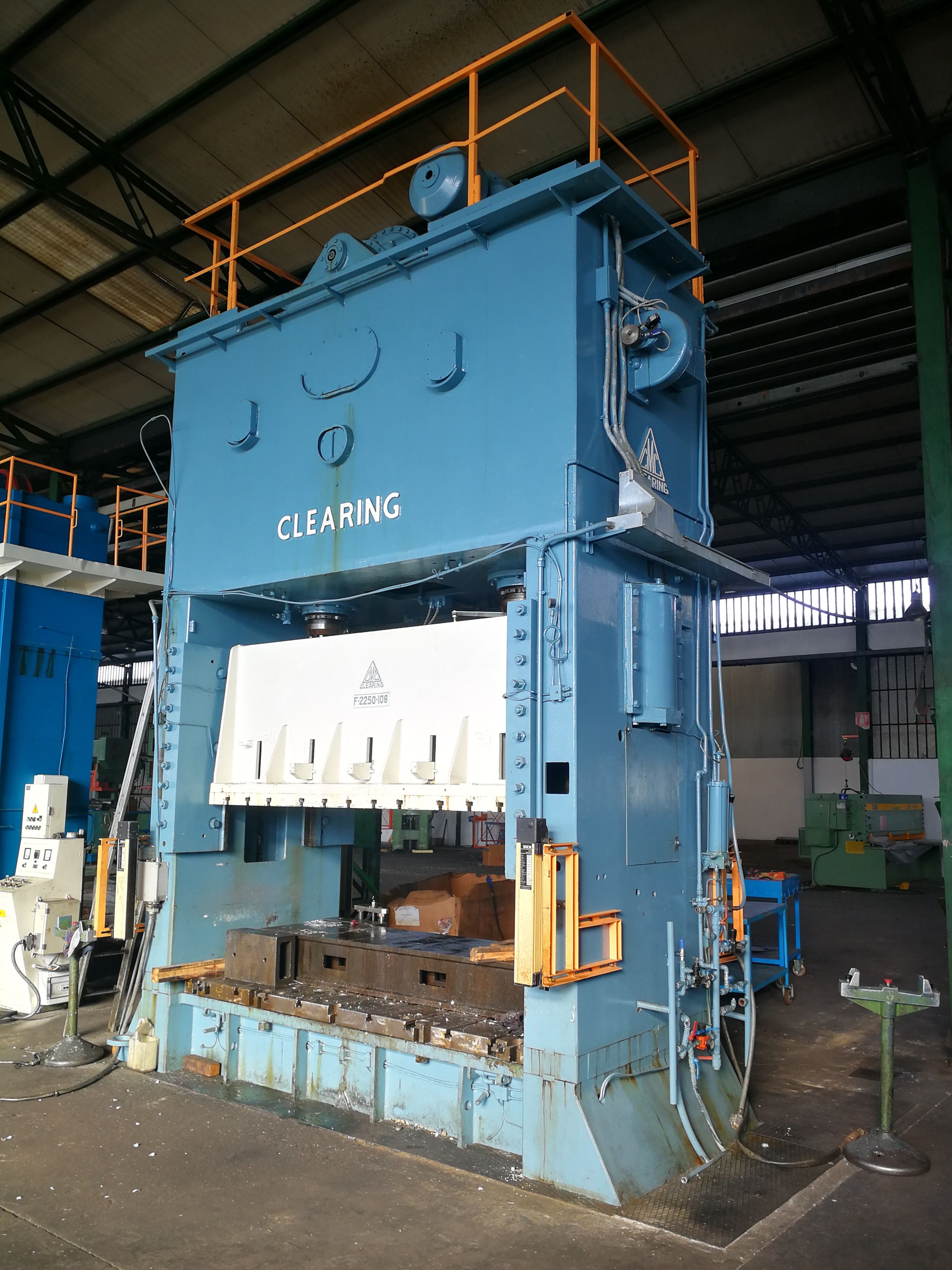

2 Uprights Mechanical Press
Capacity:
250 tons
Serial Number:
50-16935-P
Bolster Dimensions:
2800x1400 mm
Technical features
Type
MECH
Machine ID
M00033
Model
S2 250-108-52
Description
2 Uprights Mechanical Press
Capacity
tons
250
Serial Number
50-16935-P
Info
NO OVERLOAD
Connecting Rods
2
Slide Stroke
mm
356
Slide Adjustment
mm
203
Slide Dimensions
mm
2800X1400
Slide Width
mm
2800
Slide Depth
mm
1400
Bolster Width
mm
2800
Bolster Depth
mm
1400
Bolster Type
FIX
Strokes Per Minute
spm
10--15
Blank Holder
tons
70 T
Cushion Stroke
mm
180
Clearance Between The Uprights (Front)
mm
2800
Press weight
tons
80
