Mechanical Presses

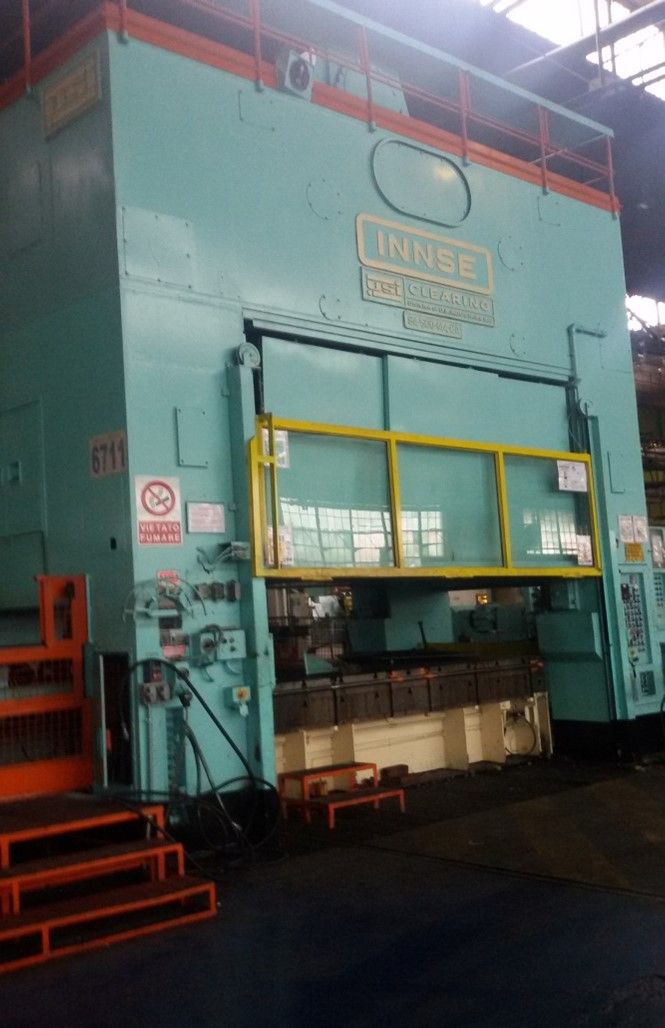

INNSE CLEARING S4-500-3657-2134
2 Uprights Mechanical Press
Capacity:
500 tons
Serial Number:
83086-81
Bolster Dimensions:
3657x2134 mm
Technical features
Type
MECH
Machine ID
M00053
Year Of Construction
1981
Model
S4-500-3657-2134
Description
2 Uprights Mechanical Press
Capacity
tons
500
Serial Number
83086-81
Connecting Rods
4
Slide Stroke
mm
254
Shut Height
mm
988
Slide Adjustment
mm
200
Slide Dimensions
mm
3657X2134
Slide Width
mm
3657
Slide Depth
mm
2134
Bolster Width
mm
3657
Bolster Depth
mm
2134
Bolster Type
MOVING FRONT
Strokes Per Minute
spm
18-55
Blank Holder
tons
NO
Clearance Between The Uprights (Front)
mm
3762
Clearance Between The Uprights (Side)
mm
1980
Press weight
tons
150
Main Motor
kw
90
