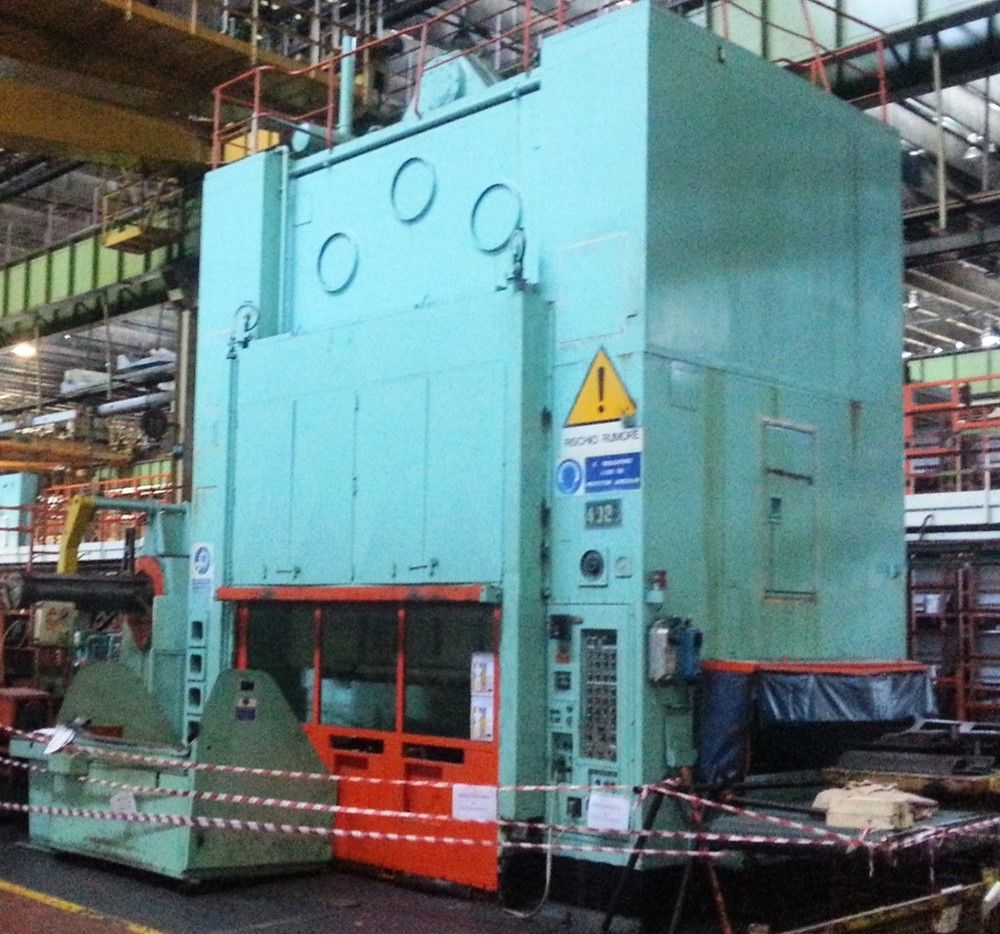

Mechanical Presses

USI-CLEARING S4-450-120-84

2 Uprights Mechanical Press

Capacity:
450 tons
Serial Number:
-180155
Bolster Dimensions:
3048x2133 mm

Technical features

Type
MECH
Machine ID
M00054
Year Of Construction
1970
Model
S4-450-120-84
Description
2 Uprights Mechanical Press
Capacity
tons
450
Serial Number
-180155
Connecting Rods
4
Slide Stroke
mm
610
Shut Height
mm
1200
Slide Adjustment
mm
203
Slide Dimensions
mm
3048X2133
Slide Width
mm
3048
Slide Depth
mm
2133
Bolster Width
mm
3048
Bolster Depth
mm
2133
Strokes Per Minute
spm
18
Blank Holder
tons
YES
Clearance Between The Uprights (Front)
mm
3100
Clearance Between The Uprights (Side)
mm
2100
Press weight
tons
150
